Tutorial: Sector-Coupled#
Note
If you have not done it yet, follow the Installation steps first.
Also, checkout the tutorial for electricity-only systems first at Tutorial: Electricity-Only.
In this tutorial, we will add further sectors to the electricity-only model from Tutorial: Electricity-Only, namely industry, transport, and buildings. This requires processing of a few more raw data sources.
The sector-coupling code can be run as an overnight / greenfield scenario or with multi-horizon investment with myopic foresight. Pathway analysis with perfect foresight is under development. See also the documentation on Foresight Options.
Overnight Scenarios#
Configuration#
The default configuration file (config/config.default.yaml) is set up for running
overnight scenarios. Running a sector-coupled model unlocks many further
configuration options. In the example below, we say that the gas network should
be added and spatially resolved. We also say that the existing gas network may
be retrofitted to transport hydrogen instead.
resolution_sector: 24h
sector:
gas_network: true
H2_retrofit: true
Documentation for all options will be added successively to Configuration.
Scenarios can be defined like for electricity-only studies, but with additional wildcard options.
scenario:
clusters:
- 5
sector_opts:
- ''
planning_horizons:
- 2030
For allowed wildcard values, refer to Wildcards.
Execution#
To run an overnight / greenfiled scenario with the specifications above, run
$ snakemake all --configfile config/test/config.overnight.yaml
which will result in the following jobs snakemake wants to run, some of
which were already included in the electricity-only tutorial:
job count
------------------------------------------------ -------
add_electricity 1
add_transmission_projects_and_dlr 1
all 1
base_network 1
build_ammonia_production 1
build_biomass_potentials 1
build_central_heating_temperature_profiles 1
build_clustered_population_layouts 1
build_cop_profiles 1
build_daily_heat_demand 1
build_direct_heat_source_utilisation_profiles 1
build_district_heat_share 1
build_electricity_demand 1
build_electricity_demand_base 1
build_energy_totals 1
build_gas_input_locations 1
build_gas_network 1
build_heat_totals 1
build_hourly_heat_demand 1
build_industrial_distribution_key 1
build_industrial_energy_demand_per_country_today 1
build_industrial_energy_demand_per_node 1
build_industrial_energy_demand_per_node_today 1
build_industrial_production_per_country 1
build_industrial_production_per_country_tomorrow 1
build_industrial_production_per_node 1
build_industry_sector_ratios 1
build_industry_sector_ratios_intermediate 1
build_osm_boundaries 4
build_population_layouts 1
build_population_weighted_energy_totals 2
build_powerplants 1
build_renewable_profiles 6
build_salt_cavern_potentials 1
build_shapes 1
build_ship_raster 1
build_shipping_demand 1
build_temperature_profiles 1
build_transmission_projects 1
build_transport_demand 1
cluster_gas_network 1
cluster_network 1
determine_availability_matrix 6
make_summary 1
plot_gas_network 1
plot_hydrogen_network 1
plot_power_network 1
plot_power_network_clustered 1
plot_summary 1
prepare_network 1
prepare_sector_network 1
retrieve_cost_data 1
retrieve_databundle 1
retrieve_eez 1
retrieve_electricity_demand 1
retrieve_eurostat_data 1
retrieve_eurostat_household_data 1
retrieve_gas_infrastructure_data 1
retrieve_gem_europe_gas_tracker 1
retrieve_gem_steel_plant_tracker 1
retrieve_hotmaps_industrial_sites 1
retrieve_jrc_ardeco 1
retrieve_jrc_enspreso_biomass 1
retrieve_jrc_idees 1
retrieve_nuts_2013_shapes 1
retrieve_nuts_2021_shapes 1
retrieve_osm_boundaries 4
retrieve_osm_prebuilt 1
retrieve_ship_raster 1
retrieve_synthetic_electricity_demand 1
retrieve_usgs_ammonia_production 1
retrieve_worldbank_urban_population 1
simplify_network 1
solve_sector_network 1
time_aggregation 1
total 92
This covers the retrieval of additional raw data from online resources and
preprocessing data about the transport, industry, and heating sectors as well as
additional rules about geological storage and sequestration potentials, gas
infrastructure, and biomass potentials. The collection rule all will also
generate summary CSV files and plots after the network has been solved
successfully.

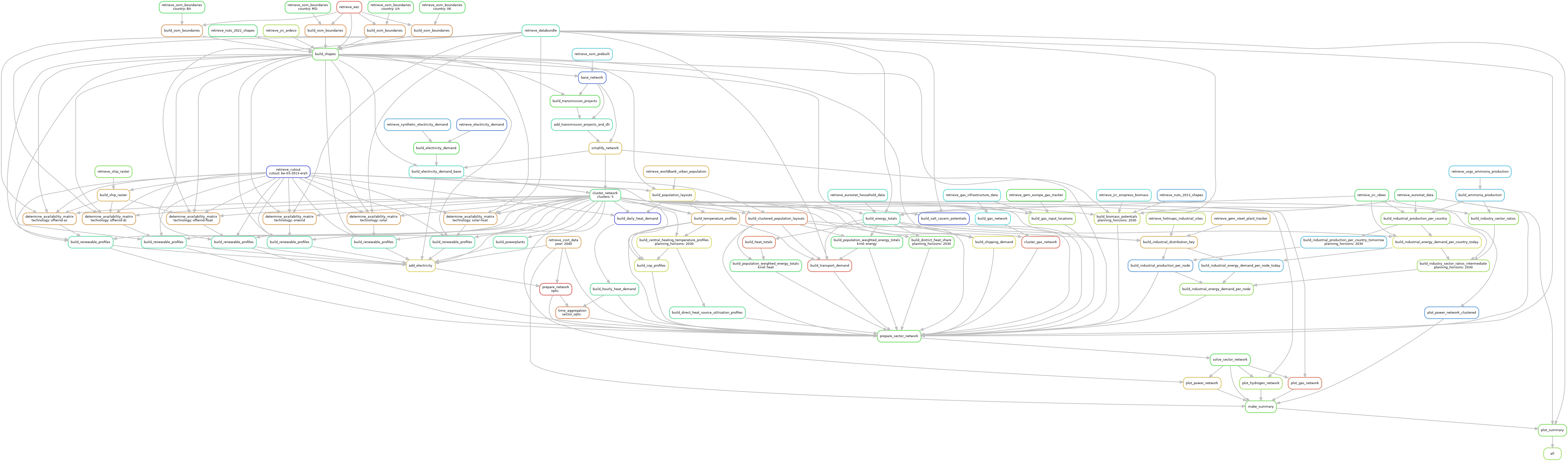

![digraph snakemake_dag {
graph[bgcolor=white, margin=0];
node[shape=box, style=rounded, fontname=sans, fontsize=10, penwidth=2];
edge[penwidth=2, color=grey];
0[label = "all", color = "0.25 0.6 0.85", style="rounded"];
1[label = "plot_summary", color = "0.29 0.6 0.85", style="rounded"];
2[label = "make_summary", color = "0.30 0.6 0.85", style="rounded"];
3[label = "solve_sector_network", color = "0.34 0.6 0.85", style="rounded"];
4[label = "prepare_sector_network", color = "0.32 0.6 0.85", style="rounded"];
5[label = "build_renewable_profiles", color = "0.43 0.6 0.85", style="rounded"];
6[label = "determine_availability_matrix\ntechnology: offwind-ac", color = "0.09 0.6 0.85", style="rounded"];
7[label = "retrieve_databundle", color = "0.45 0.6 0.85", style="rounded"];
8[label = "build_ship_raster", color = "0.11 0.6 0.85", style="rounded"];
9[label = "retrieve_ship_raster", color = "0.28 0.6 0.85", style="rounded"];
10[label = "retrieve_cutout\ncutout: be-03-2013-era5", color = "0.65 0.6 0.85", style="rounded"];
11[label = "build_shapes", color = "0.31 0.6 0.85", style="rounded"];
12[label = "retrieve_eez", color = "0.02 0.6 0.85", style="rounded"];
13[label = "retrieve_nuts_2021_shapes", color = "0.38 0.6 0.85", style="rounded"];
14[label = "build_osm_boundaries", color = "0.08 0.6 0.85", style="rounded"];
15[label = "retrieve_osm_boundaries\ncountry: BA", color = "0.35 0.6 0.85", style="rounded"];
16[label = "build_osm_boundaries", color = "0.08 0.6 0.85", style="rounded"];
17[label = "retrieve_osm_boundaries\ncountry: MD", color = "0.35 0.6 0.85", style="rounded"];
18[label = "build_osm_boundaries", color = "0.08 0.6 0.85", style="rounded"];
19[label = "retrieve_osm_boundaries\ncountry: UA", color = "0.35 0.6 0.85", style="rounded"];
20[label = "build_osm_boundaries", color = "0.08 0.6 0.85", style="rounded"];
21[label = "retrieve_osm_boundaries\ncountry: XK", color = "0.35 0.6 0.85", style="rounded"];
22[label = "retrieve_jrc_ardeco", color = "0.22 0.6 0.85", style="rounded"];
23[label = "cluster_network\nclusters: 5", color = "0.39 0.6 0.85", style="rounded"];
24[label = "simplify_network", color = "0.13 0.6 0.85", style="rounded"];
25[label = "add_transmission_projects_and_dlr", color = "0.44 0.6 0.85", style="rounded"];
26[label = "base_network", color = "0.62 0.6 0.85", style="rounded"];
27[label = "retrieve_osm_prebuilt", color = "0.52 0.6 0.85", style="rounded"];
28[label = "build_transmission_projects", color = "0.32 0.6 0.85", style="rounded"];
29[label = "build_electricity_demand_base", color = "0.47 0.6 0.85", style="rounded"];
30[label = "build_electricity_demand", color = "0.34 0.6 0.85", style="rounded"];
31[label = "retrieve_electricity_demand", color = "0.61 0.6 0.85", style="rounded"];
32[label = "retrieve_synthetic_electricity_demand", color = "0.56 0.6 0.85", style="rounded"];
33[label = "build_renewable_profiles", color = "0.43 0.6 0.85", style="rounded"];
34[label = "determine_availability_matrix\ntechnology: offwind-dc", color = "0.09 0.6 0.85", style="rounded"];
35[label = "build_renewable_profiles", color = "0.43 0.6 0.85", style="rounded"];
36[label = "determine_availability_matrix\ntechnology: offwind-float", color = "0.09 0.6 0.85", style="rounded"];
37[label = "cluster_gas_network", color = "0.03 0.6 0.85", style="rounded"];
38[label = "build_gas_network", color = "0.50 0.6 0.85", style="rounded"];
39[label = "retrieve_gas_infrastructure_data", color = "0.49 0.6 0.85", style="rounded"];
40[label = "build_gas_input_locations", color = "0.23 0.6 0.85", style="rounded"];
41[label = "retrieve_gem_europe_gas_tracker", color = "0.33 0.6 0.85", style="rounded"];
42[label = "time_aggregation\nsector_opts: ", color = "0.06 0.6 0.85", style="rounded"];
43[label = "prepare_network\nopts: ", color = "0.00 0.6 0.85", style="rounded"];
44[label = "add_electricity", color = "0.15 0.6 0.85", style="rounded"];
45[label = "build_renewable_profiles", color = "0.43 0.6 0.85", style="rounded"];
46[label = "determine_availability_matrix\ntechnology: solar", color = "0.09 0.6 0.85", style="rounded"];
47[label = "build_renewable_profiles", color = "0.43 0.6 0.85", style="rounded"];
48[label = "determine_availability_matrix\ntechnology: solar-hsat", color = "0.09 0.6 0.85", style="rounded"];
49[label = "build_renewable_profiles", color = "0.43 0.6 0.85", style="rounded"];
50[label = "determine_availability_matrix\ntechnology: onwind", color = "0.09 0.6 0.85", style="rounded"];
51[label = "retrieve_cost_data\nyear: 2040", color = "0.10 0.6 0.85", style="rounded"];
52[label = "build_powerplants", color = "0.42 0.6 0.85", style="rounded"];
53[label = "build_hourly_heat_demand", color = "0.41 0.6 0.85", style="rounded"];
54[label = "build_daily_heat_demand", color = "0.66 0.6 0.85", style="rounded"];
55[label = "build_population_layouts", color = "0.16 0.6 0.85", style="rounded"];
56[label = "retrieve_worldbank_urban_population", color = "0.12 0.6 0.85", style="rounded"];
57[label = "retrieve_eurostat_data", color = "0.38 0.6 0.85", style="rounded"];
58[label = "build_population_weighted_energy_totals\nkind: energy", color = "0.37 0.6 0.85", style="rounded"];
59[label = "build_energy_totals", color = "0.43 0.6 0.85", style="rounded"];
60[label = "retrieve_jrc_idees", color = "0.36 0.6 0.85", style="rounded"];
61[label = "retrieve_eurostat_household_data", color = "0.46 0.6 0.85", style="rounded"];
62[label = "build_clustered_population_layouts", color = "0.05 0.6 0.85", style="rounded"];
63[label = "build_population_weighted_energy_totals\nkind: heat", color = "0.37 0.6 0.85", style="rounded"];
64[label = "build_heat_totals", color = "0.04 0.6 0.85", style="rounded"];
65[label = "build_shipping_demand", color = "0.16 0.6 0.85", style="rounded"];
66[label = "build_transport_demand", color = "0.03 0.6 0.85", style="rounded"];
67[label = "build_temperature_profiles", color = "0.10 0.6 0.85", style="rounded"];
68[label = "build_biomass_potentials\nplanning_horizons: 2030", color = "0.20 0.6 0.85", style="rounded"];
69[label = "retrieve_jrc_enspreso_biomass", color = "0.49 0.6 0.85", style="rounded"];
70[label = "retrieve_nuts_2013_shapes", color = "0.57 0.6 0.85", style="rounded"];
71[label = "build_salt_cavern_potentials", color = "0.64 0.6 0.85", style="rounded"];
72[label = "build_industrial_energy_demand_per_node", color = "0.26 0.6 0.85", style="rounded"];
73[label = "build_industry_sector_ratios_intermediate\nplanning_horizons: 2030", color = "0.24 0.6 0.85", style="rounded"];
74[label = "build_industry_sector_ratios", color = "0.27 0.6 0.85", style="rounded"];
75[label = "build_ammonia_production", color = "0.54 0.6 0.85", style="rounded"];
76[label = "retrieve_usgs_ammonia_production", color = "0.53 0.6 0.85", style="rounded"];
77[label = "build_industrial_energy_demand_per_country_today", color = "0.17 0.6 0.85", style="rounded"];
78[label = "build_industrial_production_per_country", color = "0.26 0.6 0.85", style="rounded"];
79[label = "build_industrial_production_per_node", color = "0.58 0.6 0.85", style="rounded"];
80[label = "build_industrial_distribution_key", color = "0.11 0.6 0.85", style="rounded"];
81[label = "retrieve_hotmaps_industrial_sites", color = "0.21 0.6 0.85", style="rounded"];
82[label = "retrieve_gem_steel_plant_tracker", color = "0.12 0.6 0.85", style="rounded"];
83[label = "build_industrial_production_per_country_tomorrow\nplanning_horizons: 2030", color = "0.54 0.6 0.85", style="rounded"];
84[label = "build_industrial_energy_demand_per_node_today", color = "0.55 0.6 0.85", style="rounded"];
85[label = "build_district_heat_share\nplanning_horizons: 2030", color = "0.31 0.6 0.85", style="rounded"];
86[label = "build_cop_profiles", color = "0.19 0.6 0.85", style="rounded"];
87[label = "build_central_heating_temperature_profiles\nplanning_horizons: 2030", color = "0.17 0.6 0.85", style="rounded"];
88[label = "build_direct_heat_source_utilisation_profiles", color = "0.41 0.6 0.85", style="rounded"];
89[label = "plot_power_network_clustered", color = "0.58 0.6 0.85", style="rounded"];
90[label = "plot_power_network", color = "0.13 0.6 0.85", style="rounded"];
91[label = "plot_hydrogen_network", color = "0.24 0.6 0.85", style="rounded"];
92[label = "plot_gas_network", color = "0.04 0.6 0.85", style="rounded"];
1 -> 0
2 -> 1
57 -> 1
7 -> 1
3 -> 2
51 -> 2
89 -> 2
90 -> 2
91 -> 2
92 -> 2
4 -> 3
5 -> 4
33 -> 4
35 -> 4
37 -> 4
40 -> 4
42 -> 4
43 -> 4
57 -> 4
58 -> 4
63 -> 4
65 -> 4
66 -> 4
59 -> 4
7 -> 4
68 -> 4
51 -> 4
71 -> 4
24 -> 4
23 -> 4
62 -> 4
72 -> 4
53 -> 4
79 -> 4
85 -> 4
67 -> 4
86 -> 4
88 -> 4
6 -> 5
11 -> 5
23 -> 5
10 -> 5
7 -> 6
8 -> 6
11 -> 6
23 -> 6
10 -> 6
9 -> 8
10 -> 8
12 -> 11
13 -> 11
14 -> 11
16 -> 11
18 -> 11
20 -> 11
22 -> 11
7 -> 11
15 -> 14
12 -> 14
17 -> 16
12 -> 16
19 -> 18
12 -> 18
21 -> 20
12 -> 20
24 -> 23
29 -> 23
25 -> 24
26 -> 24
26 -> 25
28 -> 25
27 -> 26
11 -> 26
26 -> 28
11 -> 28
24 -> 29
11 -> 29
30 -> 29
31 -> 30
32 -> 30
34 -> 33
11 -> 33
23 -> 33
10 -> 33
7 -> 34
8 -> 34
11 -> 34
23 -> 34
10 -> 34
36 -> 35
11 -> 35
23 -> 35
10 -> 35
7 -> 36
8 -> 36
11 -> 36
23 -> 36
10 -> 36
38 -> 37
23 -> 37
39 -> 38
41 -> 40
39 -> 40
23 -> 40
43 -> 42
53 -> 42
44 -> 43
51 -> 43
45 -> 44
47 -> 44
49 -> 44
5 -> 44
33 -> 44
35 -> 44
23 -> 44
51 -> 44
52 -> 44
29 -> 44
46 -> 45
11 -> 45
23 -> 45
10 -> 45
7 -> 46
11 -> 46
23 -> 46
10 -> 46
48 -> 47
11 -> 47
23 -> 47
10 -> 47
7 -> 48
11 -> 48
23 -> 48
10 -> 48
50 -> 49
11 -> 49
23 -> 49
10 -> 49
7 -> 50
11 -> 50
23 -> 50
10 -> 50
23 -> 52
54 -> 53
55 -> 54
23 -> 54
10 -> 54
11 -> 55
56 -> 55
10 -> 55
59 -> 58
62 -> 58
11 -> 59
7 -> 59
60 -> 59
57 -> 59
61 -> 59
55 -> 62
23 -> 62
10 -> 62
64 -> 63
62 -> 63
59 -> 64
11 -> 65
23 -> 65
59 -> 65
62 -> 66
58 -> 66
59 -> 66
7 -> 66
67 -> 66
55 -> 67
23 -> 67
10 -> 67
69 -> 68
57 -> 68
70 -> 68
23 -> 68
7 -> 68
11 -> 68
7 -> 71
23 -> 71
73 -> 72
79 -> 72
84 -> 72
74 -> 73
77 -> 73
78 -> 73
75 -> 74
60 -> 74
76 -> 75
59 -> 77
60 -> 77
78 -> 77
75 -> 78
60 -> 78
57 -> 78
80 -> 79
83 -> 79
23 -> 80
62 -> 80
81 -> 80
82 -> 80
78 -> 83
80 -> 84
77 -> 84
59 -> 85
62 -> 85
87 -> 86
67 -> 86
23 -> 86
67 -> 87
23 -> 87
87 -> 88
23 -> 89
3 -> 90
23 -> 90
3 -> 91
23 -> 91
3 -> 92
23 -> 92
}](_images/graphviz-d70ff546c5da7c05dd39a736dec346ef1d92eb2b.png)
Myopic Foresight Scenarios#
Configuration#
To activate the myopic foresight mode, set
foresight: myopic
Scenarios can be defined like for electricity-only studies, but with additional
wildcard options. For the myopic foresight mode, the {planning_horizons} wildcard
defines the sequence of investment horizons.
scenario:
clusters:
- 5
sector_opts:
- ''
planning_horizons:
- 2030
- 2040
- 2050
For allowed wildcard values, refer to Wildcards.
In the myopic foresight mode, you can tweak for instance exogenously given transition paths, like the one for the share of primary steel production we change below:
industry:
St_primary_fraction:
2030: 0.6
2040: 0.5
2050: 0.4
Documentation for all options will be added successively to Configuration.
Execution#
To run a myopic foresight scenario with the specifications above, run
$ snakemake all --configfile config/test/config.myopic.yaml
which will result in additional jobs snakemake wants to run, which

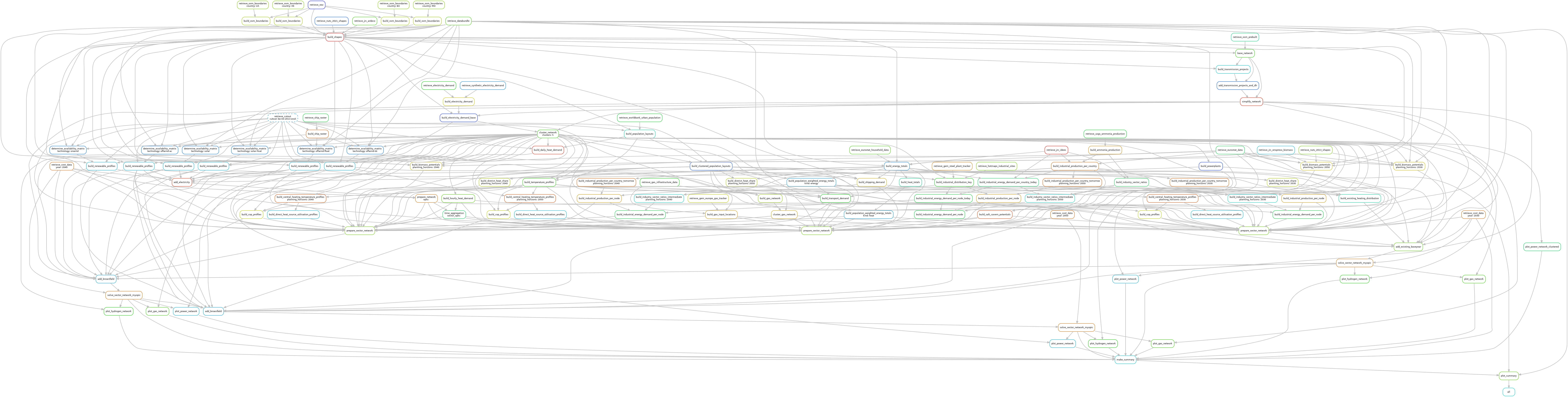

translates to the following workflow diagram which nicely outlines how the
sequential pathway optimisation with myopic foresight is implemented in the
workflow:
![digraph snakemake_dag {
graph[bgcolor=white, margin=0];
node[shape=box, style=rounded, fontname=sans, fontsize=10, penwidth=2];
edge[penwidth=2, color=grey];
0[label = "all", color = "0.50 0.6 0.85", style="rounded"];
1[label = "plot_summary", color = "0.26 0.6 0.85", style="rounded"];
2[label = "make_summary", color = "0.51 0.6 0.85", style="rounded"];
3[label = "solve_sector_network_myopic", color = "0.09 0.6 0.85", style="rounded"];
4[label = "add_existing_baseyear", color = "0.26 0.6 0.85", style="rounded"];
5[label = "prepare_sector_network", color = "0.25 0.6 0.85", style="rounded"];
6[label = "build_renewable_profiles", color = "0.53 0.6 0.85", style="rounded"];
7[label = "determine_availability_matrix\ntechnology: offwind-ac", color = "0.58 0.6 0.85", style="rounded"];
8[label = "retrieve_databundle", color = "0.28 0.6 0.85", style="rounded"];
9[label = "build_ship_raster", color = "0.07 0.6 0.85", style="rounded"];
10[label = "retrieve_ship_raster", color = "0.37 0.6 0.85", style="rounded"];
11[label = "retrieve_cutout\ncutout: be-03-2013-era5", color = "0.55 0.6 0.85", style="rounded,dashed"];
12[label = "build_shapes", color = "0.00 0.6 0.85", style="rounded"];
13[label = "retrieve_eez", color = "0.66 0.6 0.85", style="rounded"];
14[label = "retrieve_nuts_2021_shapes", color = "0.60 0.6 0.85", style="rounded"];
15[label = "build_osm_boundaries", color = "0.21 0.6 0.85", style="rounded"];
16[label = "retrieve_osm_boundaries\ncountry: BA", color = "0.23 0.6 0.85", style="rounded"];
17[label = "build_osm_boundaries", color = "0.21 0.6 0.85", style="rounded"];
18[label = "retrieve_osm_boundaries\ncountry: MD", color = "0.23 0.6 0.85", style="rounded"];
19[label = "build_osm_boundaries", color = "0.21 0.6 0.85", style="rounded"];
20[label = "retrieve_osm_boundaries\ncountry: UA", color = "0.23 0.6 0.85", style="rounded"];
21[label = "build_osm_boundaries", color = "0.21 0.6 0.85", style="rounded"];
22[label = "retrieve_osm_boundaries\ncountry: XK", color = "0.23 0.6 0.85", style="rounded"];
23[label = "retrieve_jrc_ardeco", color = "0.29 0.6 0.85", style="rounded"];
24[label = "cluster_network\nclusters: 5", color = "0.30 0.6 0.85", style="rounded"];
25[label = "simplify_network", color = "0.02 0.6 0.85", style="rounded"];
26[label = "add_transmission_projects_and_dlr", color = "0.60 0.6 0.85", style="rounded"];
27[label = "base_network", color = "0.30 0.6 0.85", style="rounded"];
28[label = "retrieve_osm_prebuilt", color = "0.43 0.6 0.85", style="rounded"];
29[label = "build_transmission_projects", color = "0.51 0.6 0.85", style="rounded"];
30[label = "build_electricity_demand_base", color = "0.64 0.6 0.85", style="rounded"];
31[label = "build_electricity_demand", color = "0.16 0.6 0.85", style="rounded"];
32[label = "retrieve_electricity_demand", color = "0.33 0.6 0.85", style="rounded"];
33[label = "retrieve_synthetic_electricity_demand", color = "0.56 0.6 0.85", style="rounded"];
34[label = "build_renewable_profiles", color = "0.53 0.6 0.85", style="rounded"];
35[label = "determine_availability_matrix\ntechnology: offwind-dc", color = "0.58 0.6 0.85", style="rounded"];
36[label = "build_renewable_profiles", color = "0.53 0.6 0.85", style="rounded"];
37[label = "determine_availability_matrix\ntechnology: offwind-float", color = "0.58 0.6 0.85", style="rounded"];
38[label = "cluster_gas_network", color = "0.13 0.6 0.85", style="rounded"];
39[label = "build_gas_network", color = "0.22 0.6 0.85", style="rounded"];
40[label = "retrieve_gas_infrastructure_data", color = "0.33 0.6 0.85", style="rounded"];
41[label = "build_gas_input_locations", color = "0.12 0.6 0.85", style="rounded"];
42[label = "retrieve_gem_europe_gas_tracker", color = "0.17 0.6 0.85", style="rounded"];
43[label = "time_aggregation\nsector_opts: ", color = "0.40 0.6 0.85", style="rounded"];
44[label = "prepare_network\nopts: ", color = "0.09 0.6 0.85", style="rounded"];
45[label = "add_electricity", color = "0.03 0.6 0.85", style="rounded"];
46[label = "build_renewable_profiles", color = "0.53 0.6 0.85", style="rounded"];
47[label = "determine_availability_matrix\ntechnology: solar", color = "0.58 0.6 0.85", style="rounded"];
48[label = "build_renewable_profiles", color = "0.53 0.6 0.85", style="rounded"];
49[label = "determine_availability_matrix\ntechnology: solar-hsat", color = "0.58 0.6 0.85", style="rounded"];
50[label = "build_renewable_profiles", color = "0.53 0.6 0.85", style="rounded"];
51[label = "determine_availability_matrix\ntechnology: onwind", color = "0.58 0.6 0.85", style="rounded"];
52[label = "retrieve_cost_data\nyear: 2040", color = "0.08 0.6 0.85", style="rounded"];
53[label = "build_powerplants", color = "0.63 0.6 0.85", style="rounded"];
54[label = "build_hourly_heat_demand", color = "0.27 0.6 0.85", style="rounded"];
55[label = "build_daily_heat_demand", color = "0.02 0.6 0.85", style="rounded"];
56[label = "build_population_layouts", color = "0.47 0.6 0.85", style="rounded"];
57[label = "retrieve_worldbank_urban_population", color = "0.36 0.6 0.85", style="rounded"];
58[label = "retrieve_eurostat_data", color = "0.39 0.6 0.85", style="rounded"];
59[label = "build_population_weighted_energy_totals\nkind: energy", color = "0.55 0.6 0.85", style="rounded"];
60[label = "build_energy_totals", color = "0.57 0.6 0.85", style="rounded"];
61[label = "retrieve_jrc_idees", color = "0.01 0.6 0.85", style="rounded"];
62[label = "retrieve_eurostat_household_data", color = "0.28 0.6 0.85", style="rounded"];
63[label = "build_clustered_population_layouts", color = "0.61 0.6 0.85", style="rounded"];
64[label = "build_population_weighted_energy_totals\nkind: heat", color = "0.55 0.6 0.85", style="rounded"];
65[label = "build_heat_totals", color = "0.44 0.6 0.85", style="rounded"];
66[label = "build_shipping_demand", color = "0.14 0.6 0.85", style="rounded"];
67[label = "build_transport_demand", color = "0.34 0.6 0.85", style="rounded"];
68[label = "build_temperature_profiles", color = "0.31 0.6 0.85", style="rounded"];
69[label = "build_biomass_potentials\nplanning_horizons: 2030", color = "0.15 0.6 0.85", style="rounded"];
70[label = "retrieve_jrc_enspreso_biomass", color = "0.52 0.6 0.85", style="rounded"];
71[label = "retrieve_nuts_2013_shapes", color = "0.24 0.6 0.85", style="rounded"];
72[label = "retrieve_cost_data\nyear: 2030", color = "0.08 0.6 0.85", style="rounded"];
73[label = "build_salt_cavern_potentials", color = "0.05 0.6 0.85", style="rounded"];
74[label = "build_industrial_energy_demand_per_node", color = "0.38 0.6 0.85", style="rounded"];
75[label = "build_industry_sector_ratios_intermediate\nplanning_horizons: 2030", color = "0.49 0.6 0.85", style="rounded"];
76[label = "build_industry_sector_ratios", color = "0.39 0.6 0.85", style="rounded"];
77[label = "build_ammonia_production", color = "0.11 0.6 0.85", style="rounded"];
78[label = "retrieve_usgs_ammonia_production", color = "0.36 0.6 0.85", style="rounded"];
79[label = "build_industrial_energy_demand_per_country_today", color = "0.41 0.6 0.85", style="rounded"];
80[label = "build_industrial_production_per_country", color = "0.08 0.6 0.85", style="rounded"];
81[label = "build_industrial_production_per_node", color = "0.12 0.6 0.85", style="rounded"];
82[label = "build_industrial_distribution_key", color = "0.34 0.6 0.85", style="rounded"];
83[label = "retrieve_hotmaps_industrial_sites", color = "0.24 0.6 0.85", style="rounded"];
84[label = "retrieve_gem_steel_plant_tracker", color = "0.10 0.6 0.85", style="rounded"];
85[label = "build_industrial_production_per_country_tomorrow\nplanning_horizons: 2030", color = "0.07 0.6 0.85", style="rounded"];
86[label = "build_industrial_energy_demand_per_node_today", color = "0.37 0.6 0.85", style="rounded"];
87[label = "build_district_heat_share\nplanning_horizons: 2030", color = "0.20 0.6 0.85", style="rounded"];
88[label = "build_cop_profiles", color = "0.18 0.6 0.85", style="rounded"];
89[label = "build_central_heating_temperature_profiles\nplanning_horizons: 2030", color = "0.06 0.6 0.85", style="rounded"];
90[label = "build_direct_heat_source_utilisation_profiles", color = "0.52 0.6 0.85", style="rounded"];
91[label = "build_existing_heating_distribution", color = "0.46 0.6 0.85", style="rounded"];
92[label = "solve_sector_network_myopic", color = "0.09 0.6 0.85", style="rounded"];
93[label = "add_brownfield", color = "0.54 0.6 0.85", style="rounded"];
94[label = "prepare_sector_network", color = "0.25 0.6 0.85", style="rounded"];
95[label = "build_biomass_potentials\nplanning_horizons: 2040", color = "0.15 0.6 0.85", style="rounded"];
96[label = "build_industrial_energy_demand_per_node", color = "0.38 0.6 0.85", style="rounded"];
97[label = "build_industry_sector_ratios_intermediate\nplanning_horizons: 2040", color = "0.49 0.6 0.85", style="rounded"];
98[label = "build_industrial_production_per_node", color = "0.12 0.6 0.85", style="rounded"];
99[label = "build_industrial_production_per_country_tomorrow\nplanning_horizons: 2040", color = "0.07 0.6 0.85", style="rounded"];
100[label = "build_district_heat_share\nplanning_horizons: 2040", color = "0.20 0.6 0.85", style="rounded"];
101[label = "build_cop_profiles", color = "0.18 0.6 0.85", style="rounded"];
102[label = "build_central_heating_temperature_profiles\nplanning_horizons: 2040", color = "0.06 0.6 0.85", style="rounded"];
103[label = "build_direct_heat_source_utilisation_profiles", color = "0.52 0.6 0.85", style="rounded"];
104[label = "solve_sector_network_myopic", color = "0.09 0.6 0.85", style="rounded"];
105[label = "add_brownfield", color = "0.54 0.6 0.85", style="rounded"];
106[label = "prepare_sector_network", color = "0.25 0.6 0.85", style="rounded"];
107[label = "build_biomass_potentials\nplanning_horizons: 2050", color = "0.15 0.6 0.85", style="rounded"];
108[label = "retrieve_cost_data\nyear: 2050", color = "0.08 0.6 0.85", style="rounded"];
109[label = "build_industrial_energy_demand_per_node", color = "0.38 0.6 0.85", style="rounded"];
110[label = "build_industry_sector_ratios_intermediate\nplanning_horizons: 2050", color = "0.49 0.6 0.85", style="rounded"];
111[label = "build_industrial_production_per_node", color = "0.12 0.6 0.85", style="rounded"];
112[label = "build_industrial_production_per_country_tomorrow\nplanning_horizons: 2050", color = "0.07 0.6 0.85", style="rounded"];
113[label = "build_district_heat_share\nplanning_horizons: 2050", color = "0.20 0.6 0.85", style="rounded"];
114[label = "build_cop_profiles", color = "0.18 0.6 0.85", style="rounded"];
115[label = "build_central_heating_temperature_profiles\nplanning_horizons: 2050", color = "0.06 0.6 0.85", style="rounded"];
116[label = "build_direct_heat_source_utilisation_profiles", color = "0.52 0.6 0.85", style="rounded"];
117[label = "plot_power_network_clustered", color = "0.40 0.6 0.85", style="rounded"];
118[label = "plot_power_network", color = "0.53 0.6 0.85", style="rounded"];
119[label = "plot_power_network", color = "0.53 0.6 0.85", style="rounded"];
120[label = "plot_power_network", color = "0.53 0.6 0.85", style="rounded"];
121[label = "plot_hydrogen_network", color = "0.32 0.6 0.85", style="rounded"];
122[label = "plot_hydrogen_network", color = "0.32 0.6 0.85", style="rounded"];
123[label = "plot_hydrogen_network", color = "0.32 0.6 0.85", style="rounded"];
124[label = "plot_gas_network", color = "0.29 0.6 0.85", style="rounded"];
125[label = "plot_gas_network", color = "0.29 0.6 0.85", style="rounded"];
126[label = "plot_gas_network", color = "0.29 0.6 0.85", style="rounded"];
1 -> 0
2 -> 1
58 -> 1
8 -> 1
3 -> 2
92 -> 2
104 -> 2
72 -> 2
117 -> 2
118 -> 2
119 -> 2
120 -> 2
121 -> 2
122 -> 2
123 -> 2
124 -> 2
125 -> 2
126 -> 2
4 -> 3
72 -> 3
5 -> 4
53 -> 4
25 -> 4
24 -> 4
63 -> 4
72 -> 4
88 -> 4
91 -> 4
60 -> 4
6 -> 5
34 -> 5
36 -> 5
38 -> 5
41 -> 5
43 -> 5
44 -> 5
58 -> 5
59 -> 5
64 -> 5
66 -> 5
67 -> 5
60 -> 5
8 -> 5
69 -> 5
72 -> 5
73 -> 5
25 -> 5
24 -> 5
63 -> 5
74 -> 5
54 -> 5
81 -> 5
87 -> 5
68 -> 5
88 -> 5
90 -> 5
7 -> 6
12 -> 6
24 -> 6
11 -> 6
8 -> 7
9 -> 7
12 -> 7
24 -> 7
11 -> 7
10 -> 9
11 -> 9
13 -> 12
14 -> 12
15 -> 12
17 -> 12
19 -> 12
21 -> 12
23 -> 12
8 -> 12
16 -> 15
13 -> 15
18 -> 17
13 -> 17
20 -> 19
13 -> 19
22 -> 21
13 -> 21
25 -> 24
30 -> 24
26 -> 25
27 -> 25
27 -> 26
29 -> 26
28 -> 27
12 -> 27
27 -> 29
12 -> 29
25 -> 30
12 -> 30
31 -> 30
32 -> 31
33 -> 31
35 -> 34
12 -> 34
24 -> 34
11 -> 34
8 -> 35
9 -> 35
12 -> 35
24 -> 35
11 -> 35
37 -> 36
12 -> 36
24 -> 36
11 -> 36
8 -> 37
9 -> 37
12 -> 37
24 -> 37
11 -> 37
39 -> 38
24 -> 38
40 -> 39
42 -> 41
40 -> 41
24 -> 41
44 -> 43
54 -> 43
45 -> 44
52 -> 44
46 -> 45
48 -> 45
50 -> 45
6 -> 45
34 -> 45
36 -> 45
24 -> 45
52 -> 45
53 -> 45
30 -> 45
47 -> 46
12 -> 46
24 -> 46
11 -> 46
8 -> 47
12 -> 47
24 -> 47
11 -> 47
49 -> 48
12 -> 48
24 -> 48
11 -> 48
8 -> 49
12 -> 49
24 -> 49
11 -> 49
51 -> 50
12 -> 50
24 -> 50
11 -> 50
8 -> 51
12 -> 51
24 -> 51
11 -> 51
24 -> 53
55 -> 54
56 -> 55
24 -> 55
11 -> 55
12 -> 56
57 -> 56
11 -> 56
60 -> 59
63 -> 59
12 -> 60
8 -> 60
61 -> 60
58 -> 60
62 -> 60
56 -> 63
24 -> 63
11 -> 63
65 -> 64
63 -> 64
60 -> 65
12 -> 66
24 -> 66
60 -> 66
63 -> 67
59 -> 67
60 -> 67
8 -> 67
68 -> 67
56 -> 68
24 -> 68
11 -> 68
70 -> 69
58 -> 69
71 -> 69
24 -> 69
8 -> 69
12 -> 69
8 -> 73
24 -> 73
75 -> 74
81 -> 74
86 -> 74
76 -> 75
79 -> 75
80 -> 75
77 -> 76
61 -> 76
78 -> 77
60 -> 79
61 -> 79
80 -> 79
77 -> 80
61 -> 80
58 -> 80
82 -> 81
85 -> 81
24 -> 82
63 -> 82
83 -> 82
84 -> 82
80 -> 85
82 -> 86
79 -> 86
60 -> 87
63 -> 87
89 -> 88
68 -> 88
24 -> 88
68 -> 89
24 -> 89
89 -> 90
63 -> 91
59 -> 91
87 -> 91
93 -> 92
52 -> 92
46 -> 93
48 -> 93
50 -> 93
6 -> 93
34 -> 93
36 -> 93
25 -> 93
24 -> 93
94 -> 93
3 -> 93
52 -> 93
101 -> 93
6 -> 94
34 -> 94
36 -> 94
38 -> 94
41 -> 94
43 -> 94
44 -> 94
58 -> 94
59 -> 94
64 -> 94
66 -> 94
67 -> 94
60 -> 94
8 -> 94
95 -> 94
52 -> 94
73 -> 94
25 -> 94
24 -> 94
63 -> 94
96 -> 94
54 -> 94
98 -> 94
100 -> 94
68 -> 94
101 -> 94
103 -> 94
70 -> 95
58 -> 95
71 -> 95
24 -> 95
8 -> 95
12 -> 95
97 -> 96
98 -> 96
86 -> 96
76 -> 97
79 -> 97
80 -> 97
82 -> 98
99 -> 98
80 -> 99
60 -> 100
63 -> 100
102 -> 101
68 -> 101
24 -> 101
68 -> 102
24 -> 102
102 -> 103
105 -> 104
108 -> 104
46 -> 105
48 -> 105
50 -> 105
6 -> 105
34 -> 105
36 -> 105
25 -> 105
24 -> 105
106 -> 105
92 -> 105
108 -> 105
114 -> 105
6 -> 106
34 -> 106
36 -> 106
38 -> 106
41 -> 106
43 -> 106
44 -> 106
58 -> 106
59 -> 106
64 -> 106
66 -> 106
67 -> 106
60 -> 106
8 -> 106
107 -> 106
108 -> 106
73 -> 106
25 -> 106
24 -> 106
63 -> 106
109 -> 106
54 -> 106
111 -> 106
113 -> 106
68 -> 106
114 -> 106
116 -> 106
70 -> 107
58 -> 107
71 -> 107
24 -> 107
8 -> 107
12 -> 107
110 -> 109
111 -> 109
86 -> 109
76 -> 110
79 -> 110
80 -> 110
82 -> 111
112 -> 111
80 -> 112
60 -> 113
63 -> 113
115 -> 114
68 -> 114
24 -> 114
68 -> 115
24 -> 115
115 -> 116
24 -> 117
3 -> 118
24 -> 118
92 -> 119
24 -> 119
104 -> 120
24 -> 120
3 -> 121
24 -> 121
92 -> 122
24 -> 122
104 -> 123
24 -> 123
3 -> 124
24 -> 124
92 -> 125
24 -> 125
104 -> 126
24 -> 126
}](_images/graphviz-f079ee20f1441f03bd159c7aa88880f6299cc4e2.png)
Scaling-Up#
If you now feel confident and want to tackle runs with larger temporal, technological and
spatial scope, clean-up the repository and after modifying the config/config.yaml file
target the collection rule all again without providing the test
configuration file.
$ snakemake purge
$ snakemake all
Note
It is good practice to perform a dry-run using the option -n, before you commit to a run:
$ snakemake all -n
